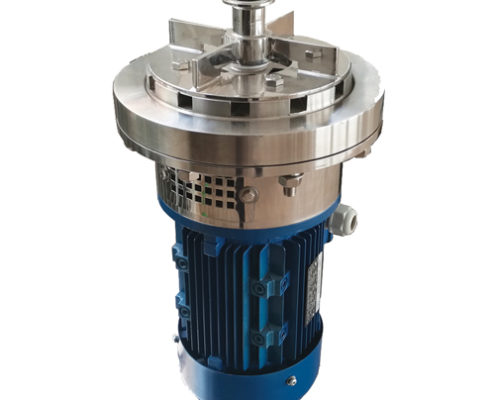

Vinegar Acetator
APPLICATION
VB Series Vinegar Acetator is a kind of fermenter aerator which used for oxygenating and mixing in fermenter treatment which achieves the highly effective of transporting and mixing oxygen.
Especially in the vinegar industry,our VB aerator could bring the fresh air (oxygen) to the liquid, vinegar bacteria could work with the enough oxygen and turn the alcohol into acetic acid and for its metabolism.
The fermenting aerator (vinegar acetator) is mainly application for:
- Food: oxygen supply of fermentation in bio-pharmaceutical industry of vinegar
- Bio-pharmaceutical: oxygen supply of fermentation in bio-pharmaceutical industry
- Beverages:such as vinegar drinks
PARAMETER
- Tank Capacity: 50,000 L Maximum
- oxygen Input 0.5-30 KgO2/h
- Power: 15 kw
- Speed:2900 /3300 rpm
- Motor: 220V/230V/380V/440V, 50/60Hz
FEATURE
- Increased the fermenting efficiency a lot for vinegar or other indutry.
- All in SS316L Material
- Producedcertified according to 3A ,GMP sanitary standard.
MATERIAL
- Parts wetted in contact with the product: Stainless steel 316L
- Locating Bushing: Hard Alloy
- Inside surface finishing Ra < 0.5 µm.
- Outside surface finishing Mirror polished
Options
OTHER
Motors with additional protection.(Explosion proof)
