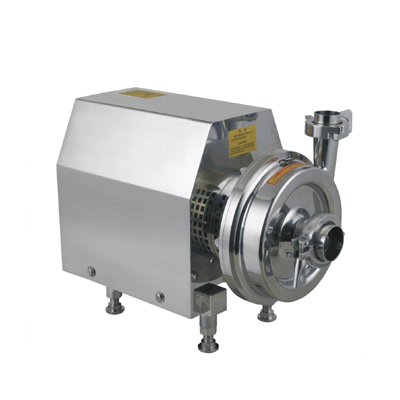

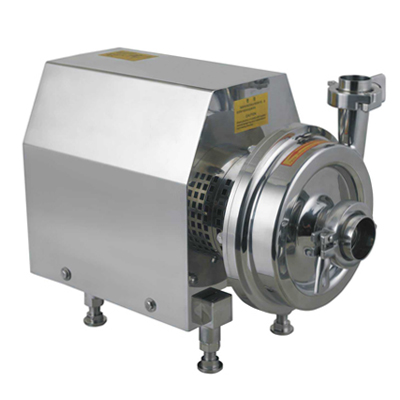

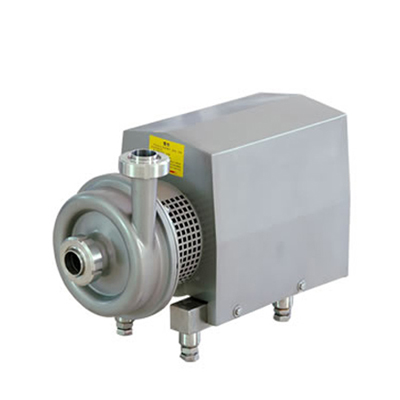

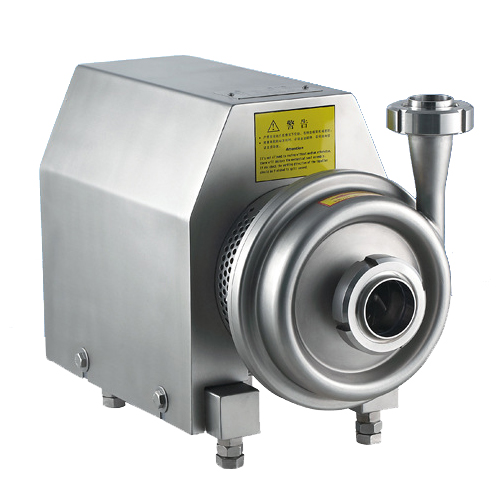

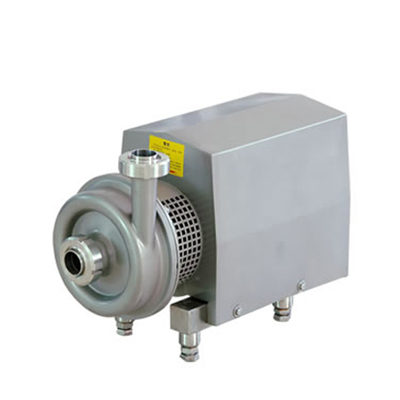

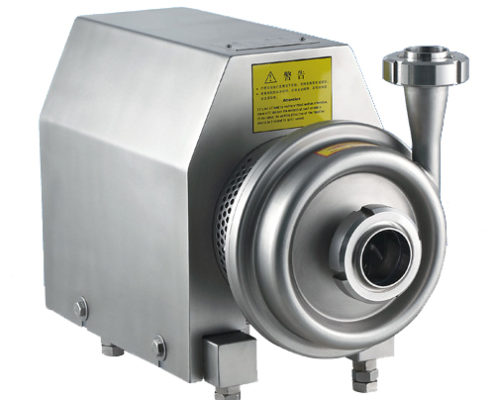

Sanitary Centrifugal Pump
APPLICATION
ZSC centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
PARAMETER
- Capacity: 1- 100 t/h
- Head : 1- 60 Meters
- Power: 0.37 kw- 55 kw
- Motor: 220V/230V/380V/440V, 50/60Hz
FEATURE
- Different connections standard:DIN,SMS,JIS, ISO
- Open impeller manufactured with stainless steel investment casting technology.
- Sanitary mechanical seal.
- Pump certified according to 3A sanitary standards.
- Very robust stainless steel cast lantern.
- Pump support from AISI 304.
MATERIAL
- Parts in contact with pumped media AISI 316L or 304
- Other parts in stainless steel AISI 304
- Gaskets (standard) EPDM (FDA)
- Mechanical seal (standard) Graphite/Sic/EPDM
- Inside surface finishing Ra < 0.4 µm.
- Outside surface finishing Mirror polished
Options
OTHER
- Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
- Cooled or double mechanical seal.
- Gaskets in FPM (Viton®) and PTFE.
- Connections: Clamp, SMS, RJT, etc.
- Motors with additional protection.(movable, Explosion proof)
- Trolley and/or Switchboard.
