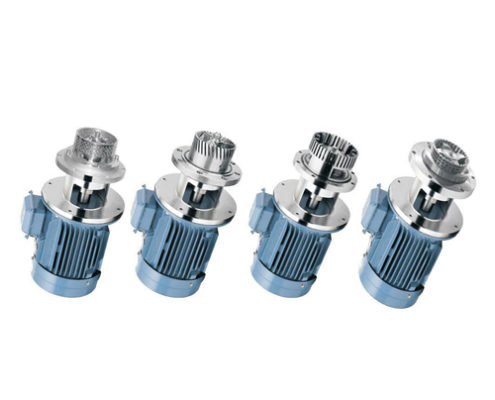

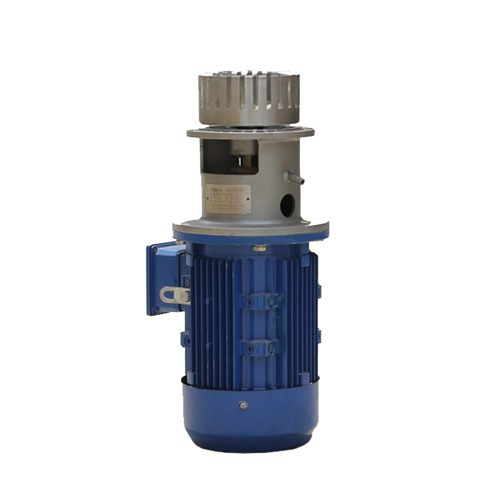

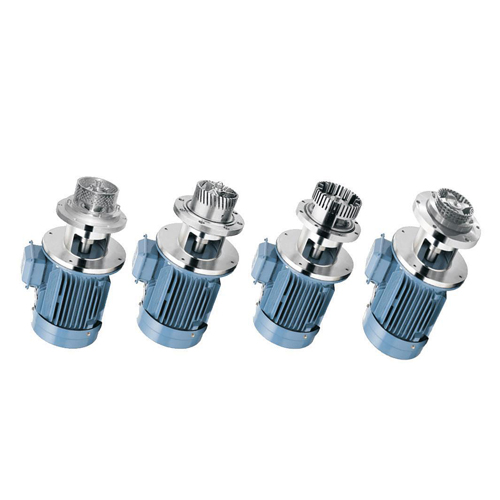

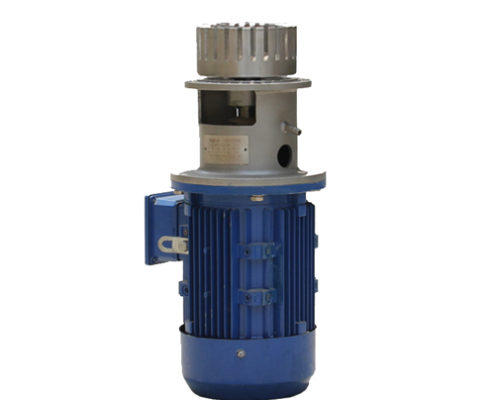

Bottom entry mixer
Tank bottom installed high shear homogenizer
APPLICATION
BM TYPE HIGH SHEAR MIXER is installed at the bottom of the tank . It is wildly used for dispersion, emulsifying, homogenization and disintegration of solids with liquid in the tank. The application of bottom high shear homogenizer is normally for food grade industry,beverage,diary, cosmetics, pharmaceutical and fine chemistry industries.

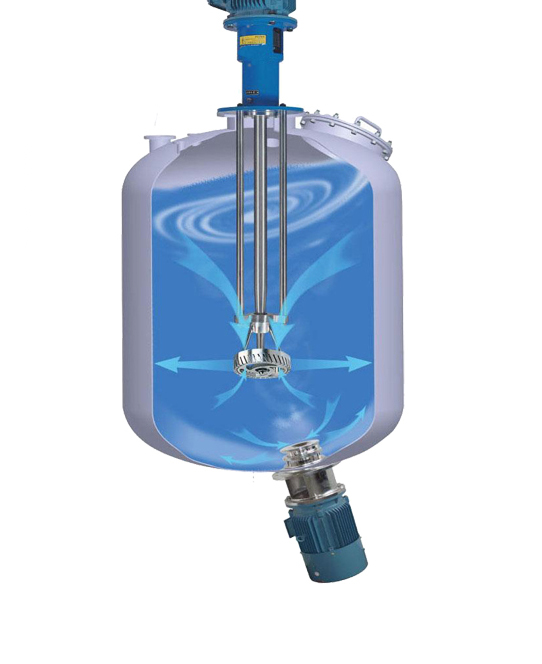

The High speed running will suck solid and liquid into the clearance of rotor and stator ,and get high sheared . Which can shearing up to 100 microns.

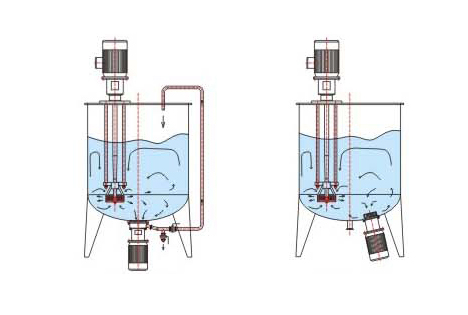

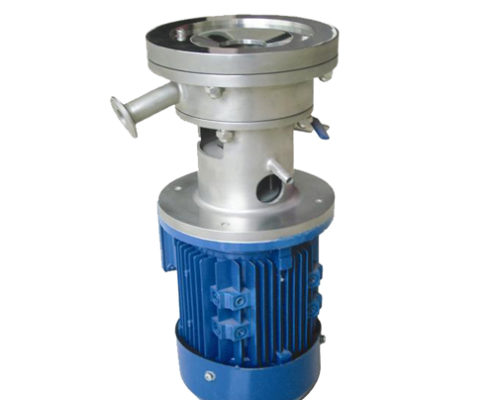

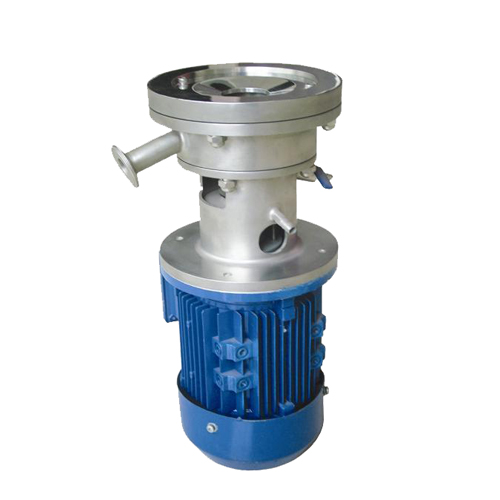

BM-C type is customized for circulation mixing.
high shear homogenizer
PARAMETER
- Viscosity: 1 – 3,000 cps
- Capacity: 1- 10,000 Liters
- Pressure : atmospheric pressure or Vacuum
- Power: 0.75 kw- 90 kw
- Speed:2900 /3300 rpm
- Motor: 220V/230V/380V/440V, 50/60Hz
FEATURE
- Combined function of dispersion, homogenizing,emulsifying,and disintegration.
- Easy Installed.
- Produced certified according to 3A ,GMP sanitary standard..
- Very robust stainless steel cast lantern.
MATERIAL
- Parts wetted in contact with the product Stainless steel 316L or 304
- Locating Bushing: Hard Alloy
- Inside surface finishing Ra < 0.4 µm.
- Outside surface finishing Mirror polished
Options
OTHER
- Longer shaft
- rectangular flange for the assembly on a tank.
- Lifting support
- Motors with additional protection.(movable, Explosion proof)
- Trolley and/or control panel.
