Inline mixer
Inline high shear mixer or emulsifying pump
APPLICATION
ZIM high shear inline mixer is also called as emulsifying pump. It is used for mixing,homogenizing,and emulsifying the solid with liquid inline.Mainly applicated for the production of ophthalmologic or contact lens solutions, syrups, pill coatings, creams, lotions and injection products.
CIP and SIP structure design make the ZIM inline mixer can meet very high strict hygienic request for pharmaceutical industry.

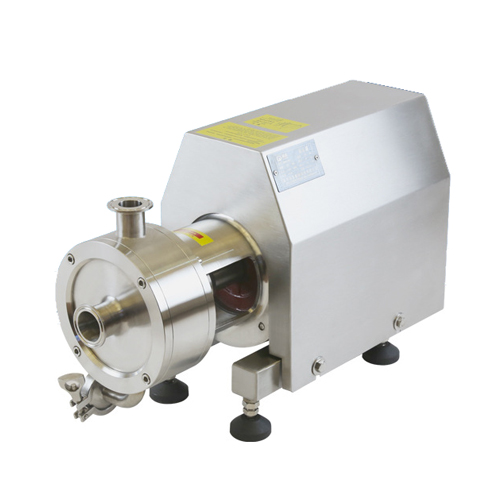

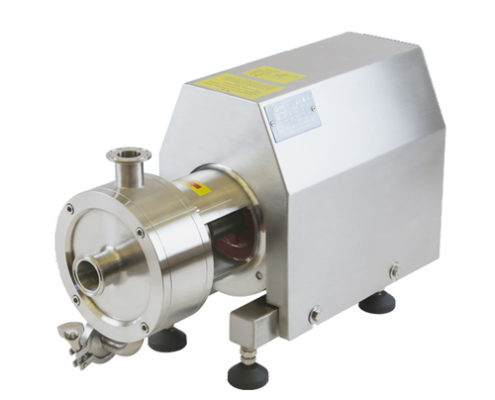

ZIM-1 Means there are one set rotor and stator inside the inline mixer

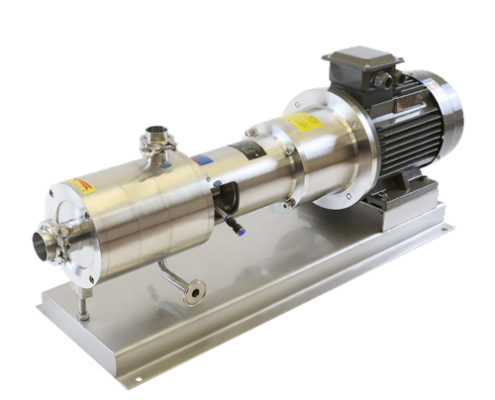

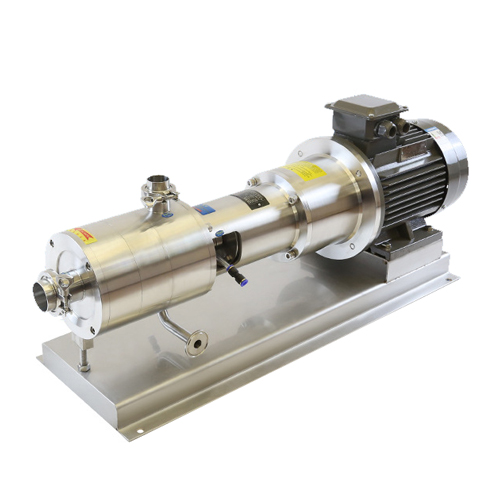

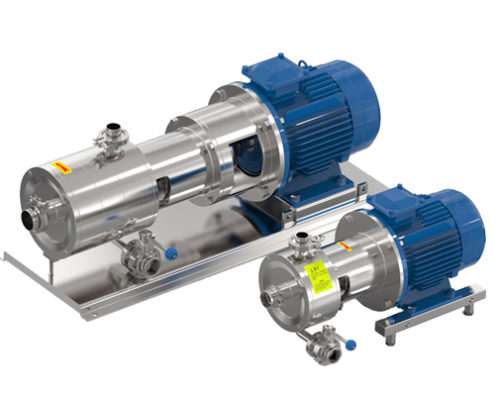

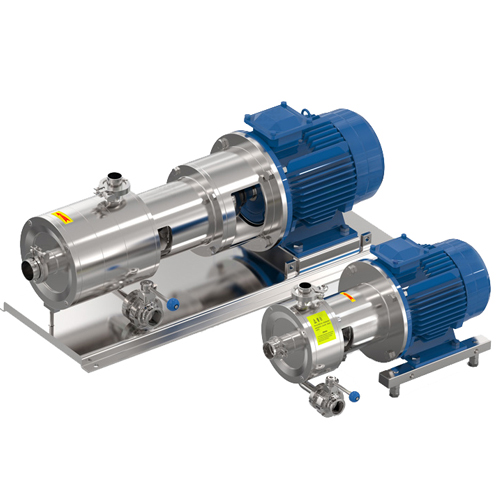

ZIM-2/3 mean there are 2 or 3 sets rotors and stators in side the inline mixer.
The more sets mean faster and much better emulsifying effect.
PARAMETER
- Viscosity: 1- 5,000 cps
- Shearing size: 100 microns minimum
- Capacity: 1- 110 t/h
- Power: 0.37 kw- 75 kw
- Speed:2900/3300 rpm
- Motor: 220V/230V/380V/440V, 50/60Hz
FEATURE
- Can emulsifying inline.
- Double mechanical seal with cooling water
CIP and SIP available - No dead spot, easy to clean, Compliance with 3A ,FDA,GMP
- Abrasion-free
MATERIAL
- Parts in contact with pumped media AISI 316L or 304
- Other parts in stainless steel AISI 304
- Gaskets (standard) EPDM (FDA)
- Mechanical seal (standard) Graphite/Sic/EPDM
- Inside surface finishing Ra < 0.4 µm.
- Outside surface finishing Mirror polished
Options
OTHER
- Mechanical seals: SiC/SiC or TuC/SiC.
- Cooled mechanical seal, pressurised double mechanical seal, lip seal or O-ring seal.
- Gaskets in EPDM or PTFE.
- Heating chamber.
- Motors with additional protection.(movable, Explosion proof)
- Trolley and/or control panel.
- Connections: clamp, SMS, RJT, etc.
